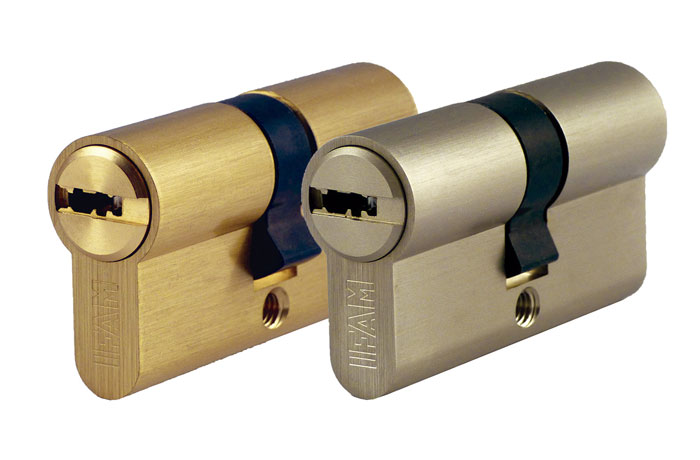

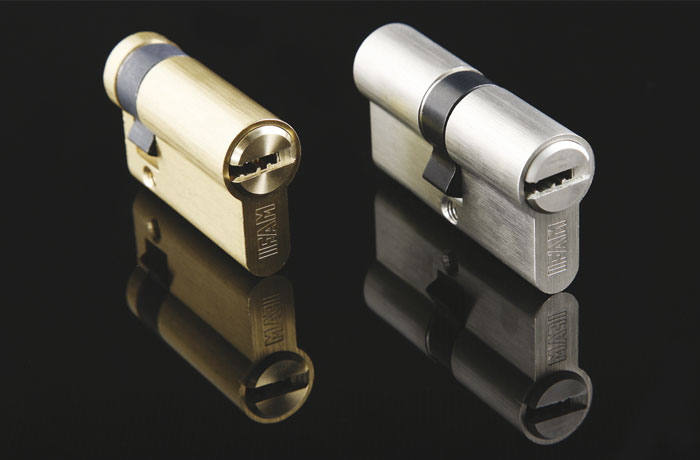

M Series cylinder locks

The widest range of IFAM cylinder locks

Adaptability is the characteristic that best defines IFAM’s M Series security cylinder locks. Prepared for doors between 40 and 100 mm thick, available in standard DIN and short cam, in standard format and with knob, IFAM’s M series cylinders meet the needs of people who are looking for a cylinder with a good level of security and reliability, at a very competitive price.

Download file M Series cylinder locks. Technical sheet pdf 196.55 KB

Features

Profile: – European.
Body: – Made of extruded brass.
– Brass and matt-nickel finish.
Internal components: – 6 hardened pin row with thousands of differs.
– Pick proof security system.
– Drill resistant cotters.
–  Stainless steel springs.
Cam: – Available in standard DIN cam (15 mm) and short cam (13,2mm).
Opening / closure: – Standard system and thumb turn cylinders.
– Thumb turn cylinders available.

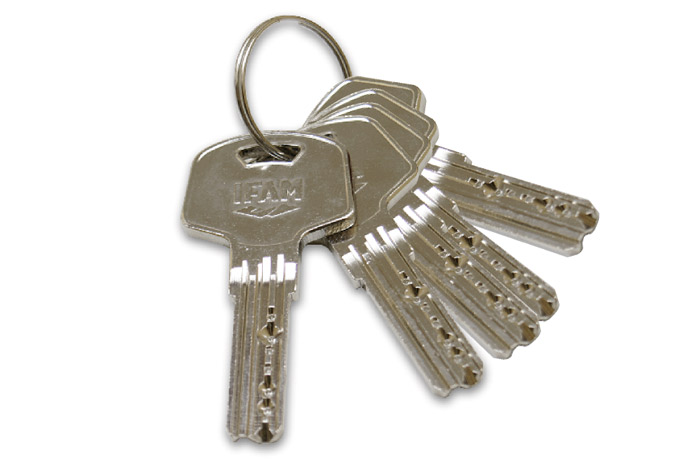

Keys: – Security dimple keys.
– Supplied with 5 keys.
– Key compatible with: RX Series and M Anti Snap Series cylinders; Huno80 padlock; CS88 and CS88LV rim locks.

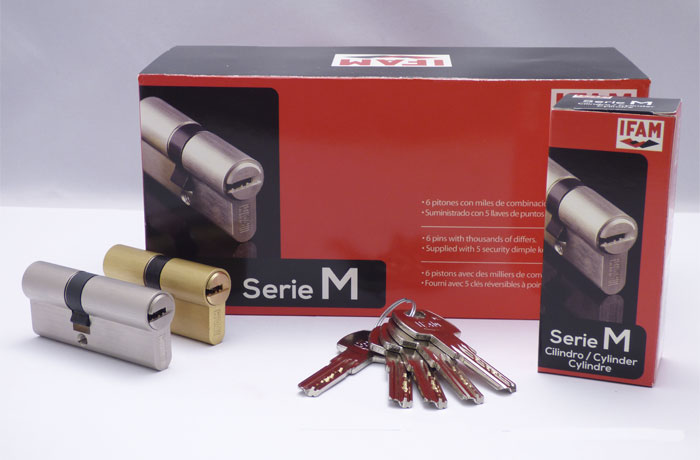

Packaging: – Box and blister packed.

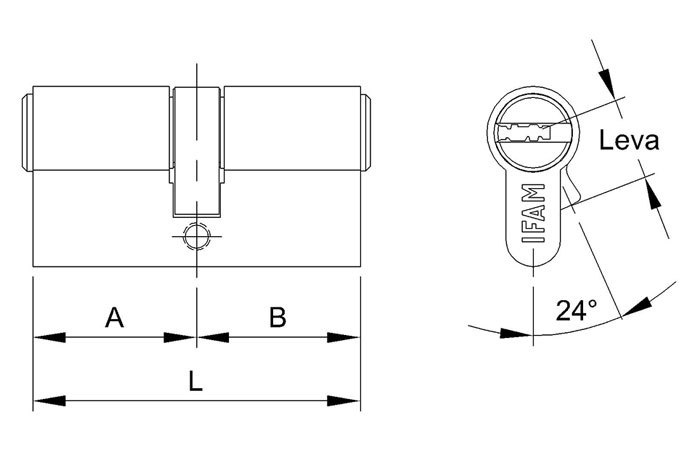

Dimensions

BOX PACKED

L A B Standard DIN cam
M1030L 40 10 30 15
M1030N 40 10 30 15
M1040L 50 10 40 15
M1040N 50 10 40 15
M3030L 60 30 30 15
M3030N 60 30 30 15
M3035L 65 30 35 15
M3035N 65 30 35 15
M3040L 70 30 40 15
M3040N 70 30 40 15
M3535L 70 35 35 15
M3535N 70 35 35 15
M3045L 75 30 45 15
M3045N 75 30 45 15
M3540L 75 35 40 15
M3540N 75 35 40 15
M3050L 80 30 50 15
M3050N 80 30 50 15
M4040L 80 40 40 15
M4040N 80 40 40 15
M3545L 80 35 45 15
M3545N 80 35 45 15
M3550L 85 35 50 15
M3550N 85 35 50 15
M3060L 90 30 60 15
M3060N 90 30 60 15
M4050L 90 40 50 15
M4050N 90 40 50 15
M4545L 90 45 45 15
M4545N 90 45 45 15
M3070L 100 30 70 15
M3070N 100 30 70 15
M4060L 100 40 60 15
M4060N 100 40 60 15
M5050L 100 50 50 15
M5050N 100 50 50 15



L A B Short cam
M1030LC 40 10 30 13,2
M1030NC 40 10 30 13,2
M1040LC 50 10 40 13,2
M1040NC 50 10 40 13,2
M3030LC 60 30 30 13,2
M3030NC 60 30 30 13,2
M3035LC 65 30 35 13,2
M3035NC 65 30 35 13,2
M3040LC 70 30 40 13,2
M3040NC 70 30 40 13,2
M3535LC 70 35 35 13,2
M3535NC 70 35 35 13,2
M3045LC 75 30 45 13,2
M3045NC 75 30 45 13,2
M3540LC 75 35 40 13,2
M3540NC 75 35 40 13,2
M3050LC 80 30 50 13,2
M3050NC 80 30 50 13,2
M4040LC 80 40 40 13,2
M4040NC 80 40 40 13,2
M3545LC 80 35 45 13,2
M3545NC 80 35 45 13,2
M3550LC 85 35 50 13,2
M3550NC 85 35 50 13.2
M3060LC 90 30 60 13,2
M3060NC 90 30 60 13,2
M4050LC 90 40 50 13,2
M4050NC 90 40 50 13,2
M4545LC 90 45 45 13,2
M4545NC 90 45 45 13,2
M3070LC 100 30 70 13,2
M3070NC 100 30 70 13,2
M4060LC 100 40 60 13,2
M4060NC 100 40 60 13,2
M5050LC 100 50 50 13,2
M5050NC 100 50 50 13,2

L: Brass finish. / N: Nickel-matt finish. / LC: Brass finish. Short cam. / NC:Nickel-matt finish. Short cam.



BLISTER PACKED

L A B Standard DIN cam
M1030L 40 10 30 15
M1030N 40 10 30 15
M1040L 50 10 40 15
M1040N 50 10 40 15
M3030L 60 30 30 15
M3030N 60 30 30 15
M3035L 65 30 35 15
M3035N 65 30 35 15
M3040L 70 30 40 15
M3040N 70 30 40 15
M3535L 70 35 35 15
M3535N 70 35 35 15
M3045L 75 30 45 15
M3045N 75 30 45 15
M3540L 75 35 40 15
M3540N 75 35 40 15
M3050L 80 30 50 15
M3050N 80 30 50 15
M4040L 80 40 40 15
M4040N 80 40 40 15
M3545L 80 35 45 15
M3545N 80 35 45 15
M3550L 85 35 50 15
M3550N 85 35 50 15
M3060L 90 30 60 15
M3060N 90 30 60 15
M4050L 90 40 50 15
M4050N 90 40 50 15
M4545L 90 45 45 15
M4545N 90 45 45 15



L A B Short cam
M1030LC 40 10 30 13,2
M1030NC 40 10 30 13,2
M1040LC 50 10 40 13,2
M1040NC 50 10 40 13,2
M3030LC 60 30 30 13,2
M3030NC 60 30 30 13,2
M3035LC 65 30 35 13,2
M3035NC 65 30 35 13,2
M3040LC 70 30 40 13,2
M3040NC 70 30 40 13,2
M3535LC 70 35 35 13,2
M3535NC 70 35 35 13,2
M3045LC 75 30 45 13,2
M3045NC 75 30 45 13,2
M3540LC 75 35 40 13,2
M3540NC 75 35 40 13,2
M3050LC 80 30 50 13,2
M3050NC 80 30 50 13,2
M4040LC 80 40 40 13,2
M4040NC 80 40 40 13,2
M3545LC 80 35 45 13,2
M3545NC 80 35 45 13,2
M3550LC 85 35 50 13,2
M3550NC 85 35 50 13.2
M3060LC 90 30 60 13,2
M3060NC 90 30 60 13,2
M4050LC 90 40 50 13,2
M4050NC 90 40 50 13,2
M4545LC 90 45 45 13,2
M4545NC 90 45 45 13,2

L: Brass finish. / N: Nickel-matt finish. / LC: Brass finish. Short cam. / NC:Nickel-matt finish. Short cam.



THUMB TURN

L A B Standard DIN cam
MP3030L 60 30 30 15
MP3030N 60 30 30 15
MP3040L 70 30 40 15
MP3040N 70 30 40 15
MP3535L 70 35 35 15
MP3535N 70 35 35 15
MP4030L 70 40 30 15
MP4030N 70 40 30 15
MP3050L 80 30 50 15
MP3050N 80 30 50 15
MP4040L 80 40 40 15
MP4040N 80 40 40 15
MP3060L 90 30 60 15
MP3060N 90 30 60 15



L A B Short cam
MP3030LC 60 30 30 13,2
MP3030NC 60 30 30 13,2
MP3040LC 70 30 40 13,2
MP3040NC 70 30 40 13,2
MP3535LC 70 35 35 13,2
MP3535NC 70 35 35 13,2
MP3050LC 80 30 50 13,2
MP3050NC 80 30 50 13,2
MP4040LC 80 40 40 13,2
MP4040NC 80 40 40 13,2

L: Brass finish. / N: Nickel-matt finish. / LC: Brass finish. Short cam. / NC:Nickel-matt finish. Short cam.







Associated Services

  • Master keying service.
  • Keying alike service.
  • Certain key number service.
  • Unique key solution.
  • Assembly kit available (special for locksmiths).
